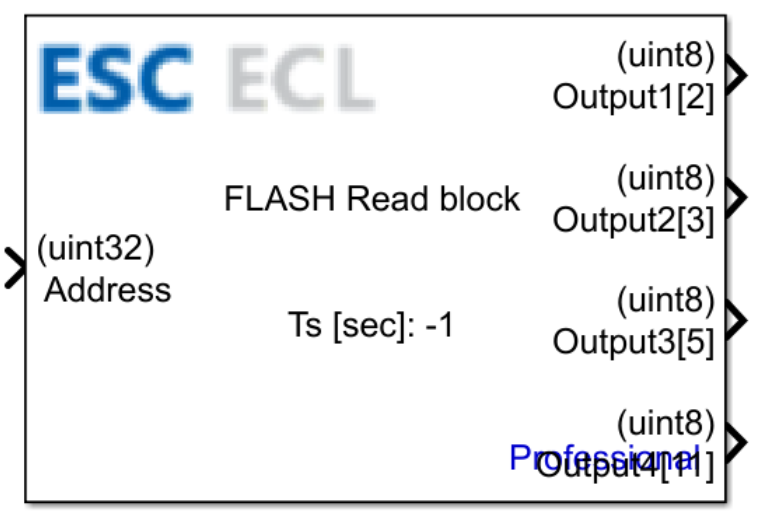

Flash Read Block Description
This block enables reading data from the microcontroller’s internal Flash memory.
Table of Contents
Inputs
| Input Name | Type | Description |
|---|---|---|
| Address | uint32 | The target base memory address within Flash memory from which the data is read. |
Outputs
| Output Name | Type | Description |
|---|---|---|
Output[N] | uint8 | Conditional output Outputs the data elements corresponding to the N-th block segment read from Flash memory. The total number of output signals, individual segment index assignments, and their sizes are defined by the Read size vector parameter. |

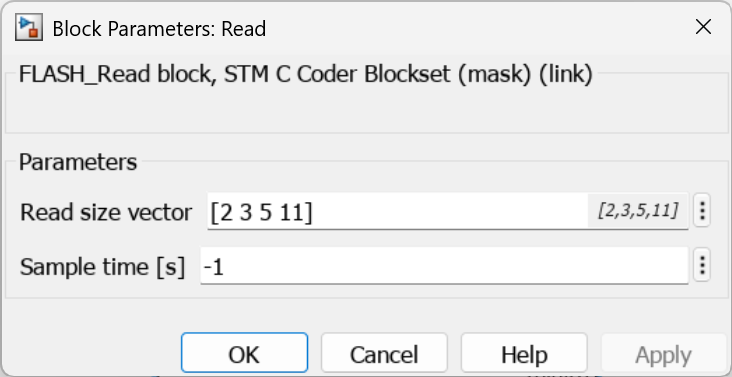

Block Parameters
| Parameter | Description |
|---|---|
| Read size vector | An array vector specifying both the count and size (in bytes) of individual data segments to be read sequentially from Flash memory. For instance, a parameter assignment of [2 3 5 11] dictates that data will be retrieved across 4 separate data paths with respective lengths of 2, 3, 5, and 11 bytes. |
| Sample time [s] | Specifies the software cyclic refresh execution update interval for the block in seconds. |
CubeMX Configuration for a Given MCU Model
This block does not require any additional setup inside CubeMX.
