FRAM Read Block Description

This block enables reading data from a non-volatile Ferroelectric Random Access Memory (FRAM) chip via a Serial Peripheral Interface (SPI).

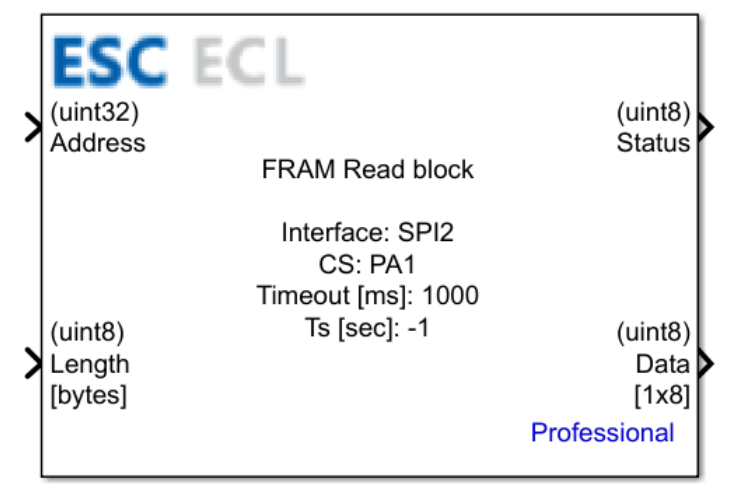

FRAM Read block

Inputs

Input Name	Type	Description
Address	uint32	The target base memory address within FRAM memory from which data retrieval begins.
Length [bytes]	uint8	The total number of consecutive bytes to be read from the memory chip.

Output Name	Type	Description
Status	uint8	Outlines the operational execution status of the SPI communication routine: `1` – read operation completed successfully `0` – communication failure or transaction timeout
Data	uint8[1x8]	An array returning the raw payload bytes read from the external FRAM memory chip.

Parameter	Description
Interface	Selection of the communication interface standard (default fixed to `SPI`).
Interface number	Specifies the hardware instance identifier index of the SPI peripheral embedded on the MCU.
Chip Select Port	The GPIO port group letter designated for the active-low slave select signal (Chip Select).
Chip Select Pin	The physical hardware pin number belonging to the chosen Chip Select Port.
Sample time [s]	Specifies the software cyclic refresh execution update interval for the block.
Timeout [ms]	The maximum duration in milliseconds allowed for the hardware SPI driver transaction query to complete before throwing an error.

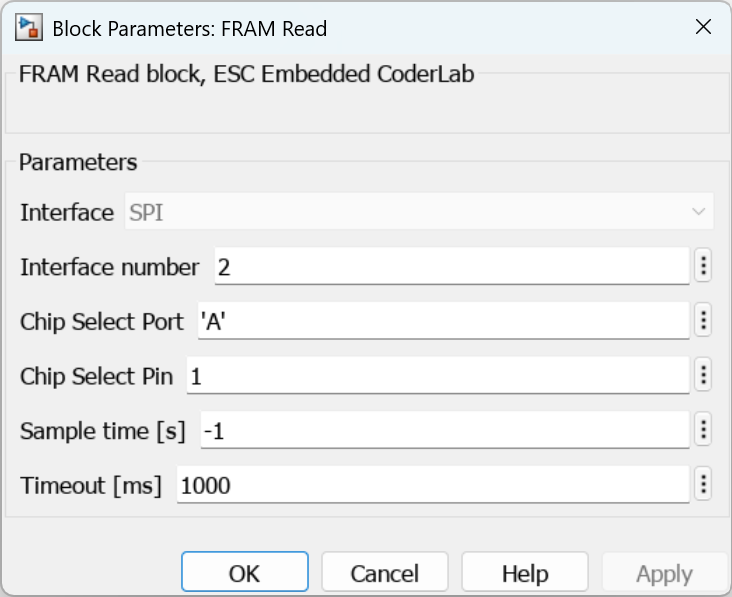

Parameters for FRAM Read block

To configure CubeMX for a given microcontroller model, you must set up the SPI interface according to the provided instructions.
