SPI Receive only Peripheral Block Description
This block handles the SPI peripheral interface in Receive only mode. It is used to receive data from an SPI device. This block is useful in scenarios where the SPI device only needs to output data, such as with certain sensors or memory chips.
Table of Contents
Inputs
This block does not have any inputs.

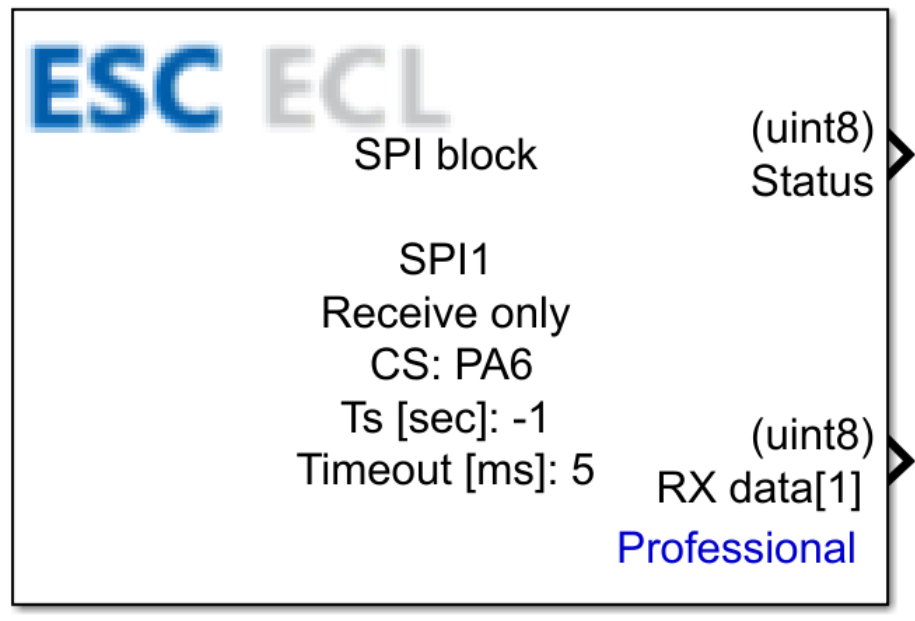

Outputs
| Output Name | Type | Description |
|---|---|---|
| Status | uint8 | Reception status. Returns:1 reception succeeded0 reception failed |
| RX data[ ] | uint8 | Data received from the SPI device. The amount of data depends on the Receive size parameter. |

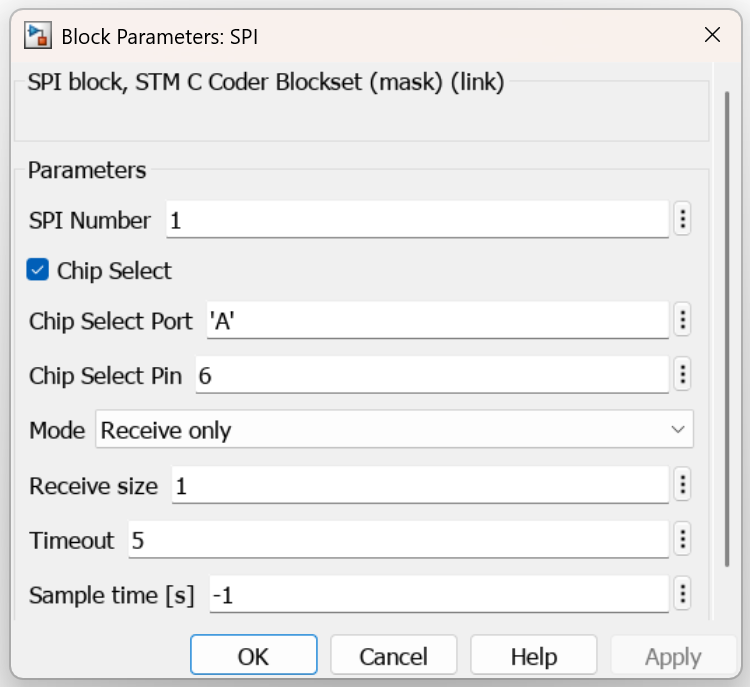

Block Parameters
| Parameter | Description |
|---|---|
| SPI Number | SPI module number |
| Chip Select | Option to enable the Chip Select pin selection. If disabled, the CS pin will not be available or the Hardware NSS Signal must be used. |
| Chip Select Port | Conditional Parameter GPIO port for the Chip Select pin. This parameter is available if the Chip Select option is enabled. |
| Chip Select Pin | Conditional Parameter GPIO pin for the Chip Select pin. This parameter is available if the Chip Select option is enabled. |
| Mode | SPI block operating mode:Transmit only - transmission modeReceive only - reception modeTransmit and receive - simultaneous transmission and reception modeReceive after transmit - sequential transmission and subsequent reception mode |
| Receive size | Data transfer size in bytes. This parameter determines the amount of data that will be received in one transmission cycle. |
| Timeout | The time to wait for the transmission to complete. If the transmission does not finish within this period, the block returns an error status. |
| Sample time [s] | Function refresh period |
CubeMX Configuration for a Given MCU Model
Configuration of CubeMX for the SPI interface can be found in the CubeMX Configuration for a Given MCU Model section.
