TIM Capture Block Description
This block enables PWM signal measurement using the TIM peripheral in STM microcontrollers.
Table of Contents
Inputs
This block has no inputs.
Outputs

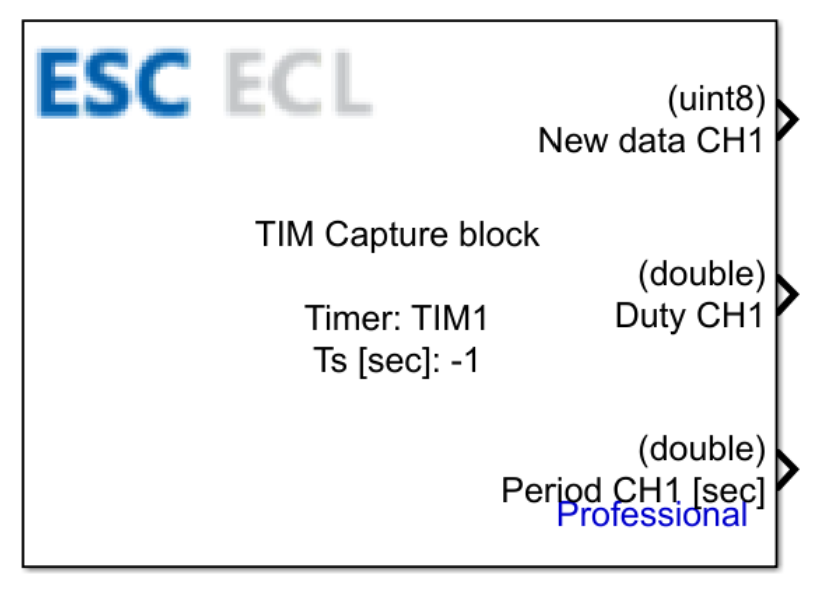

| Output Name | Type | Description |
|---|---|---|
| New data CH* | uint8 | New measurement from channel CH*. Returns:1 new measurement available0 no new measurement |
| Duty CH* | double | Duty cycle of the PWM signal on channel CH*. |
| Period CH* [sec] | double | Period of the PWM signal on channel CH*. |
CH* - the * symbol in the output name represents the channel number configured in the block parameters. Depending on the block settings, multiple outputs may exist for different channels.
Block Parameters
| Parameter | Description |
|---|---|
| Timer | The timer number that will be used to measure the PWM signal. |
| Timer clock (MHz) | The timer clock frequency in MHz set within the CubeMX file. |
| Prescaler | The timer prescaler value. This parameter can be configured inside the block instead of the CubeMX configuration. |

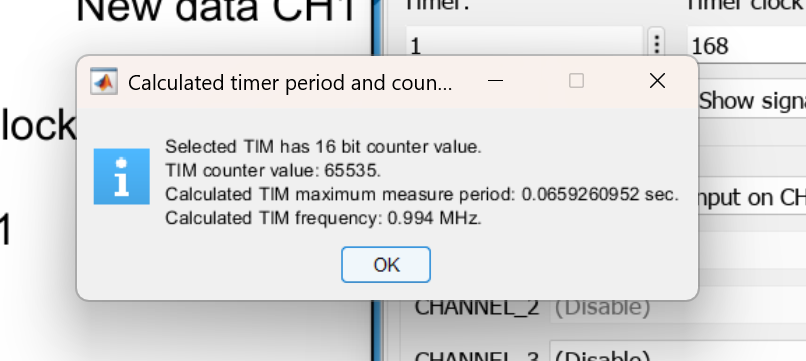

| Show signal properties | Enables the display of timer properties to facilitate correct calculations. |
| Parameter | Description |
|---|---|
| Combined channels | Configures combined channels for full PWM signal measurement:(Disable) - option is disabledPWM input on CH1 - measured PWM signal input on channel CH1PWM input on CH2 - measured PWM signal input on channel CH2 |
| CHANNEL_* | Timer channel configuration for PWM signal measurement (PWM Input mode):Disable – channel is disabledInput capture direct mode – direct mode; the PWM signal is connected to the physical pin associated with this channel (e.g., CH1 for IC1)Input capture indirect mode – indirect mode; the channel measures the signal routed internally from the adjacent pin (e.g., CH2 for IC1) |
CHANNEL_* - the * symbol in the parameter name represents the channel number configured in the block parameters. Depending on the block settings, multiple parameters may exist for different channels.
CubeMX Configuration for a Given MCU Model
H7
CubeMX Settings
| No. | Name | Path | Setting | Description | Screenshot |
|---|---|---|---|---|---|
| 1 | Clock Source | Pinout & Configuration > TIM* > Mode > Clock Source | Internal Clock | Selects the clock source for the timer. |  |

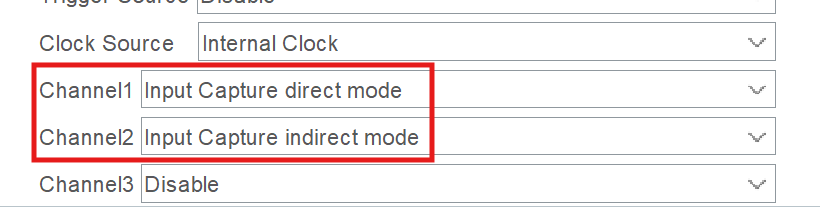

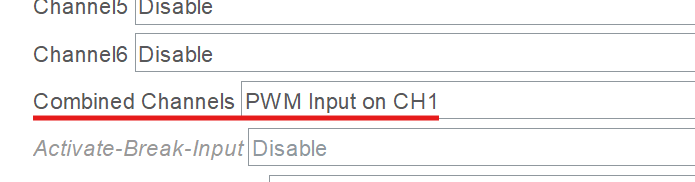

| 2 | Channel* / Combined Channels Configuration | Pinout & Configuration > TIM* > Mode > Channel* / Combined Channels | Setting matching the block parameters configuration | Selects the timer channel operating mode or configures the Combined Channels option. These options are mutually exclusive. |   |
| 3 | Global interrupt / Update interrupt | Pinout & Configuration > TIM* > NVIC Settings > Global interrupt / Update interrupt | Enabled | Enables timer interrupts. Some timers feature a Global or Update interrupt; one of these options must be enabled. |   |

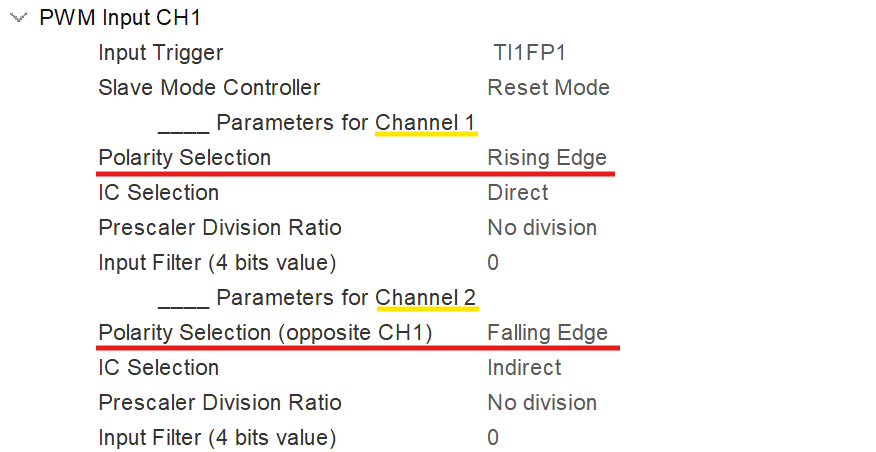

| 4 | Polarity Selection | Pinout & Configuration > TIM* > Parameter Settings > PWM Input CH* > Polarity Selection | Direct channel as Rising Edge, indirect channel as Falling Edge | Conditional setting When Combined Channels mode is selected, the polarity of the Direct channel should be set to Rising Edge, and the indirect channel to Falling Edge. |  |
